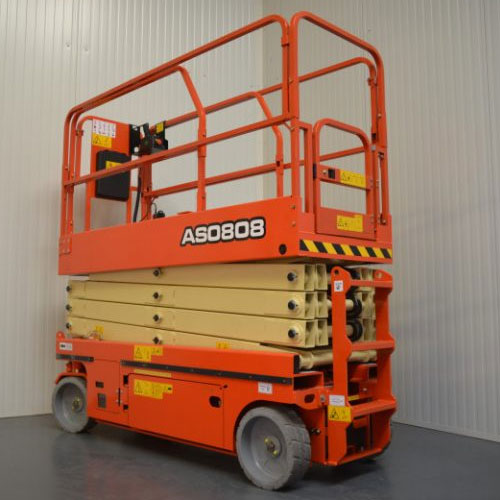

AS0808
Most durable and reliable scissor stacks
| Lift Capacity 230 kg |
Working Height 10.00 m |
Most durable and reliable scissor stacks
| Lift Capacity 230 kg |
Working Height 10.00 m |
| Lift Capacity | 230 kg |
| Extension Lift Capacity | 113 kg |
| Platform Occupants | 2 |
| Working Height | 10.00 m |
| Platform Height | 8.00 m |
| Length | 2.47 m |
| Width | 0.83 m |
| Height | 2.27 m |
| Height – Rails Folded | 1.96 m |

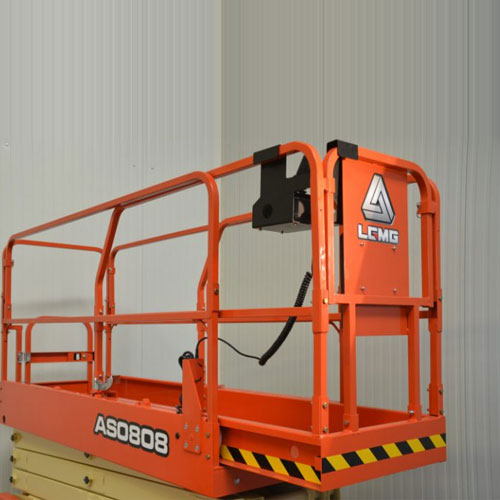

| Platform Dimension (L x W) | 2.26 x 0.81 m |
| Length – Platform Extension | 0.90 m |
| Min. Ground Clearance – Stowed | 0.10 m |
| Min. Ground Clearance – Raised | 0.02 m |
| Wheelbase | 1.85 m |
| Turning Radius – Outside | 2.10 m |
| Max. Gradeability | 25 % |
| Max. Slope | 1,5/3,0 ° |
| Up/Down Speed | 31/40 sec |
| Driving Speed | 0,8 – 3,5 km/h |
| Non-marking Tires | 380 x 130 mm |
| Driving Motor | Hydraulic |
| Lifting Motor | 24V/3,3kW |
| Battery | 4x6V/225Ah |
| Charger | 24V/30A |
| Machine Weight | 2.180 kg |
